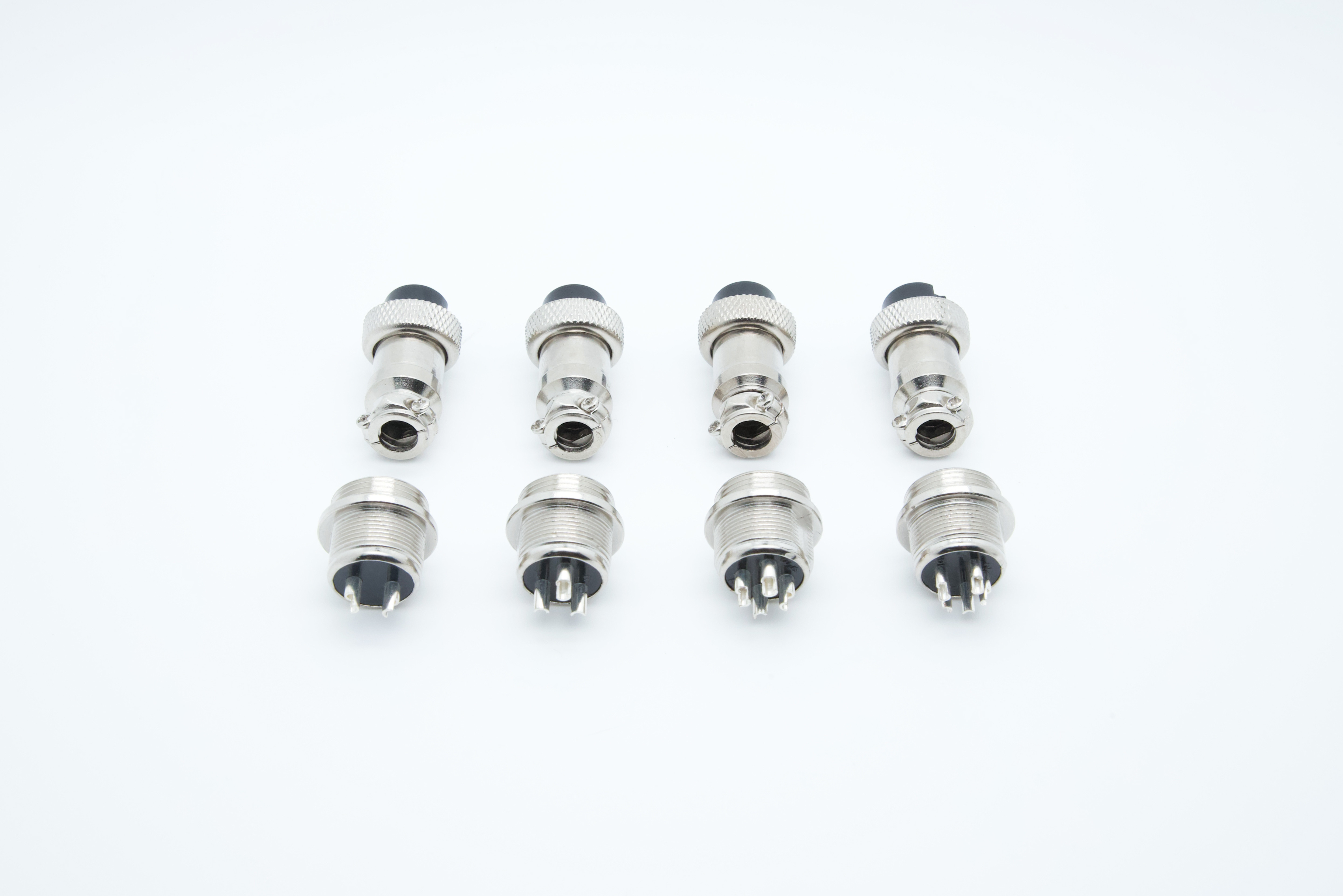

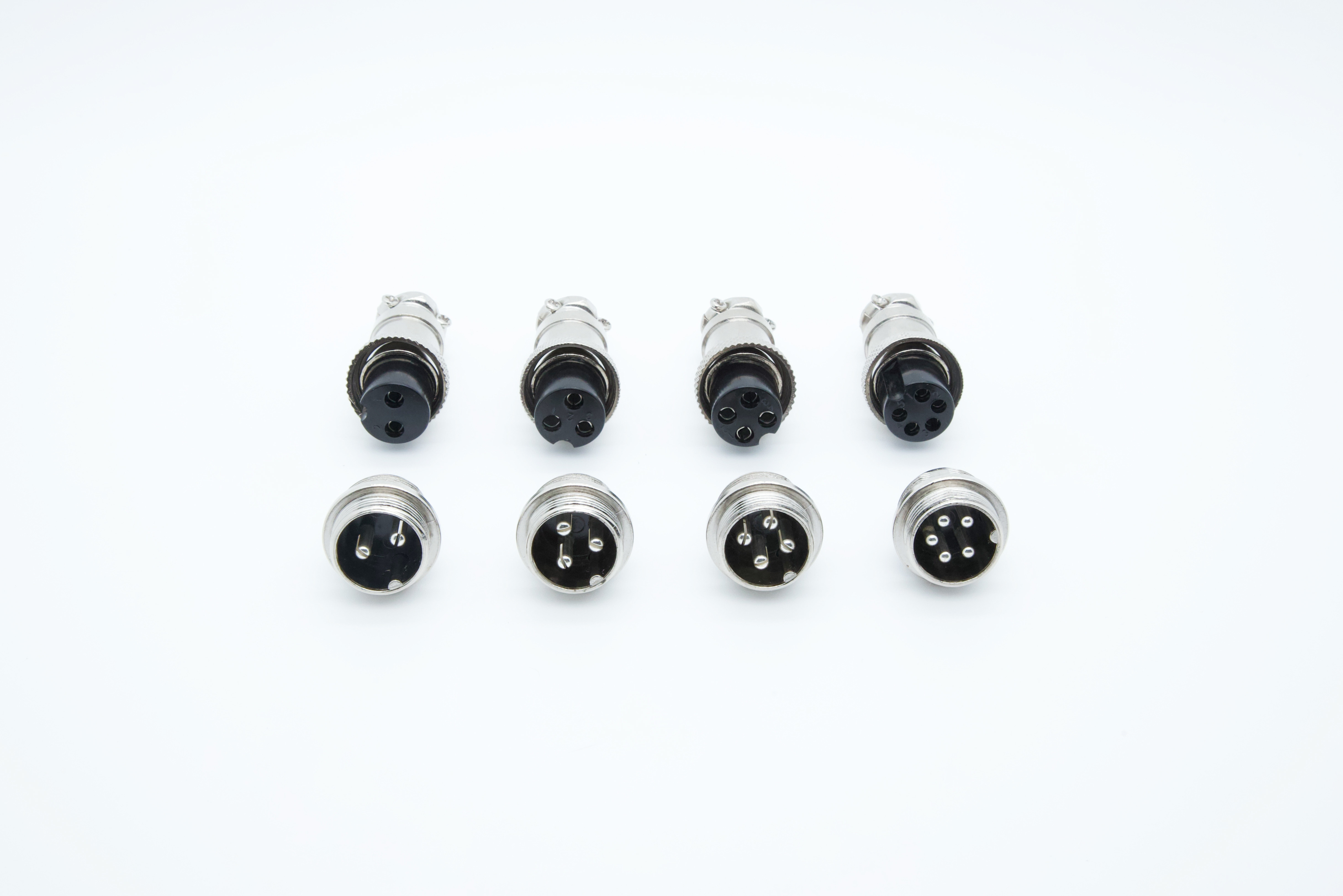

2p to 5p pin gx16 male to female Locked wire type tin plated
aviation customized connector plug
Definition of aviation header
Aviation plug, withstand acid and alkali resistance does not
corrode and rust, to achieve absolute waterproof and dustproof,
stable voltage input or output, anti-misplaced and other
requirements. Our industrial control machines and industrial tablet
PCs and other products, almost all products are used in aviation
plugs to ensure that customers high-quality machine computing, to
meet the needs of different customers in the complex and diverse
industrial environment operations
Aviation plug is the common name of the electrical connector, also
known as aviation connector, aviation electrical connector, because
initially used in the aviation field and named. Generally used with
the aviation socket, now widely used in navigation, aerospace,
aviation, national defense, military, nuclear industry, electric
power and other fields, the shell material is often used magnesium
aluminum alloy, stainless steel, etc., strong and durable.
specification
All aviaton plugs and sockets with flame-retardant grade insulated
shells to prevent contact between the aerial socket and the
cabinet, non-metallic material, rectangular in shape.
Telemetry circuit connector, using a 6-core aerial plug, shall have
an anti-open circuit function (automatic short circuit when the
plug is unplugged).
Remote control circuit using a 4-core aerial plug.
Telemetry circuit adopts 6-core aerial plug.
Aviaton plug shall be equipped with a special PE connection bit;
and shield wire connection earlier than the pin connection to
ensure safety.
Plugs and sockets must have locking parts to prevent them from
falling off after connection.
The plug shall preferably be wired in a tool-free manner with a
straight spring connection.
The pins inside the aerial plugs and sockets shall be silver-plated
on the surface; to ensure the reliability of the connection.
Aviation plugs and sockets should be designed to prevent
misplugging on site
Operating ambient temperature meets -55℃～120C.
