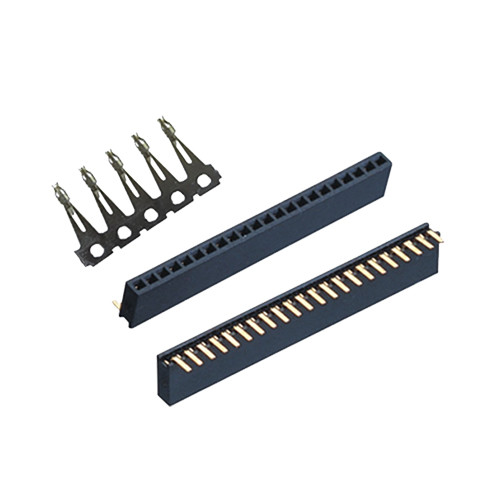

right angle 1.27/2.0/2.54 mm 40p dual row pin header smt single row female male connector

Definition of female header

Female Header is a type of connector.
This connector is widely used in electronic, electrical, instrument in the PCB circuit board, its role is in the circuit is blocked or isolated between the circuit, play a bridge function, take up the task of current or signal transmission.

Usually used with pin header, forming a board-to-board connection; Or matching with the electronic wiring harness terminal, forming a board-to-wire connection; Can also be used independently for board to board connection.
Because the specifications required by different products are not the same, there are also a variety of specifications.

Application

Female header is widely used in vehicle-mounted monitoring, instrumentation, Internet of things, new energy vehicles, LED display field, POS machine and scanner, lighting industry, security industry, electronic toys, household appliances, etc., providing the most reliable connection board to board and wire to board.

specification

High temperature resistant insulating plastic (UL94V-0) material: PBT(only meet the wave soldering process).
High temperature resistant insulating plastic (UL94V-0) material: PA6T, PA9T, LCP(can meet the wave soldering, reflow welding two kinds of process).
The color of insulating plastic can be divided into black, white, blue, natural color and so on.
Hardware contact terminal material: brass (C2680) or phosphor copper (C5191), leather copper.
Hardware contact terminal surface treatment: nickel plating first in gold or silver plating, bright tin plating, wuxi plating, semi-gold tin plating, etc.

First according to the requirements of injection molding insulating plastic and stamping good metal contact terminal, and according to the requirements of metal contact terminal nickel plated or plated silver, bright tin, tin plating, tin plating, tin plating
Finally, assemble the metal contact terminals on the insulating plastic according to the size requirements of special equipment.

Shenzhen Soulin Electronics Technology Co., Ltd. was established in September 2009

Currently, the main products are pin header, female header, box header, aviation connector, board to board connector, SATA connector, DIN41612 connector, RJ45 and other precision connectors.

The factory with area of 6000 square and about the total number of employees 200 people and owns 32 precision mold processing equipment,35 sets high-speed precision punch,110 sets of automated assembly machines.

These products are mainly applied to vehicle monitoring, instruments and apparatus, LED display screen, Computer motherboards,Internet of Things, new energy, mobile storage and other fields.

Soulin company realizes the integrated business model of developing, manufacturing, selling and serving connectors.The Hardware Department, Injection Molding Department, Assembly Department and Square Pin Stamping Department are set up in succession.

All of products compliant“ROHS”and“REACH”,and also we can offer OEM manufacturing services and can meet customer’ demands with punctual delivery and perfect service.

Soulin company has established a long-term cooperative relationship with many domestic and foreign famous enterprises and sold products in Asia, Europe and America.

We are looking forward to setting up business partnerships with customers worldwide.

.
