High temperature resistant gx16 aviation plug waterproof aviation plug connector

Aviation plug definition

Aviation plug is the common name of electrical connectors, also known as aviation connectors, aviation electrical connectors, because the initial use in the aviation field and named. Generally used with the aviation socket, now widely used in navigation, aerospace, aviation, national defense, military, nuclear industry, electric power and other fields, the shell material is often used magnesium aluminum alloy, stainless steel, etc., strong and durable.

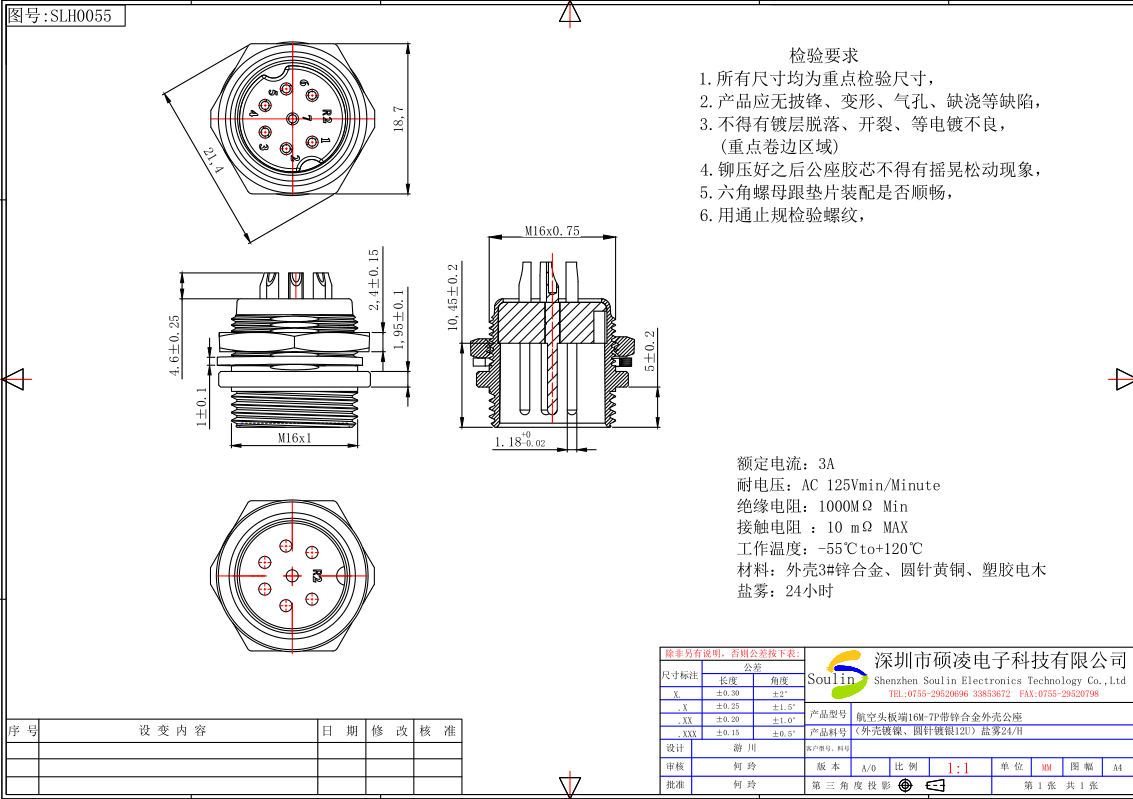

Drawings

Its product specifications are divided as follows:

①By connection: threaded connection, bayonet (quick) connection, snap-lock connection, push-pull connection, in-line connection.
②By shape: round and rectangular (cross-section).
③ according to the working frequency: low frequency and high frequency (to 3MHz as the boundary).
The technical parameters of the aviation plug usually three categories are.
① electrical performance: rated voltage, rated current, contact resistance, voltage resistance and insulation resistance, shielding, RF interference attenuation value
②Mechanical performance: the number of contact pairs and pinhole sex, installation mode and shape, shell material, insulator, contact, mechanical life, etc.
③Environmental technical performance: working temperature, working height, vibration, shock, constant acceleration, sealing, anti-salt spray, anti-humidity, anti-mold performance, etc.

Product detail

Aviation plug shall be equipped with special PE connection bit; and shield wire connection before the pin connection to ensure safety.

Plugs and sockets shall have locking parts to prevent disconnection after connection.

The cores shall preferably be wired in a tool-free manner with straight spring connection.

The pins inside the aerial plugs and sockets shall be silver-plated on the surface; to ensure the reliability of the connection.

Aviation plugs and sockets should be designed to prevent misplugging on site

Operating ambient temperature meets -40℃～125C.

Shenzhen Soulin Electronics Technology Co., Ltd. was established in September 2009

Currently, the main products are pin header, female header, box header, aviation connector, board to board connector, SATA connector, DIN41612 connector, RJ45 and other precision connectors.

The factory with area of 6000 square and about the total number of employees 200 people and owns 32 precision mold processing equipment,35 sets high-speed precision punch,110 sets of automated assembly machines.

These products are mainly applied to vehicle monitoring, instruments and apparatus, LED display screen, Computer motherboards,Internet of Things, new energy, mobile storage and other fields.

Soulin company realizes the integrated business model of developing, manufacturing, selling and serving connectors.The Hardware Department, Injection Molding Department, Assembly Department and Square Pin Stamping Department are set up in succession.

All of products compliant“ROHS”and“REACH”,and also we can offer OEM manufacturing services and can meet customer’ demands with punctual delivery and perfect service.

Soulin company has established a long-term cooperative relationship with many domestic and foreign famous enterprises and sold products in Asia, Europe and America.

We are looking forward to setting up business partnerships with customers worldwide.

.
