    2.54mm Male 180 Degree Board To Board Connector High Temperature Insulation

    Ask Lasest Price
    Brand Name : Soulin
    Model Number : BtoB connecotr
    Certification : ISO9001&ISO14001
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 50K Per month
    Delivery Time : 10-12days
    • Product Details
    • Company Profile

    2.54mm Male 180 Degree Board To Board Connector High Temperature Insulation

    2.54mm male 180 degree board to board connector high temperature insulation black 10p customized pcb board connectors


    board to board connector definition


    Board-to-board connectors are the most powerful connector products among all connector product types in terms of transmission capability.


    In high-speed train and industrial control and data center storage and switching systems, our board-to-board connectors provide reliable high-speed data transfer with greater clarity, while flame-retardant polarized housings protect connections in harsh environments. In high-speed computing, our backplane connectors help support data center architectures and the backbone of rugged embedded computing systems. On PCBs for mobile and wearable devices, as well as patient monitoring technology and security systems, our shrapnel can perform multiple functions: surface-mount internal connectors (our simple C-type) are used for antenna feeds and low-voltage electrical connections when designed for single contact, while our multiple preloaded shrapnel on the board are used to provide shielding against EMI noise and static.

    2.54mm Male 180 Degree Board To Board Connector High Temperature Insulation

    Main Applications

    It is mainly used in electric power system, communication network, financial manufacturing, elevator, industrial automation, medical equipment, office equipment, home appliances, military manufacturing and other industries.

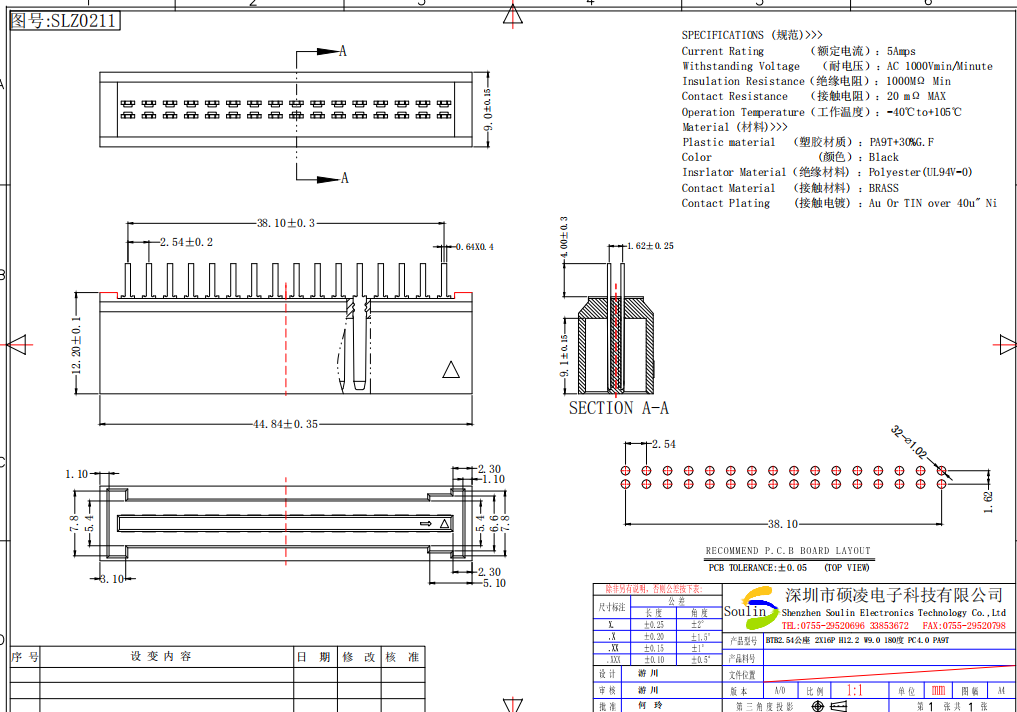

    specifications

    The main pitch of board-to-board connectors are 0.4mm, 0.5mm, 0.635mm, 0.8mm, 1.00m, and 1.27mm.

    BTB connectors are divided into four mounting types.
    Through-hole technology
    Surface mount technology
    Plug-in technology
    Solderless stacking sandwich technology


    Contact platingsemi gold and tin or tin over 40u” NI
    Insrlator MaterialPolyester(UL94V-0)
    Current Rating5.0Amps
    Contact materialbrass
    Contact Resistance20m Ω MAX
