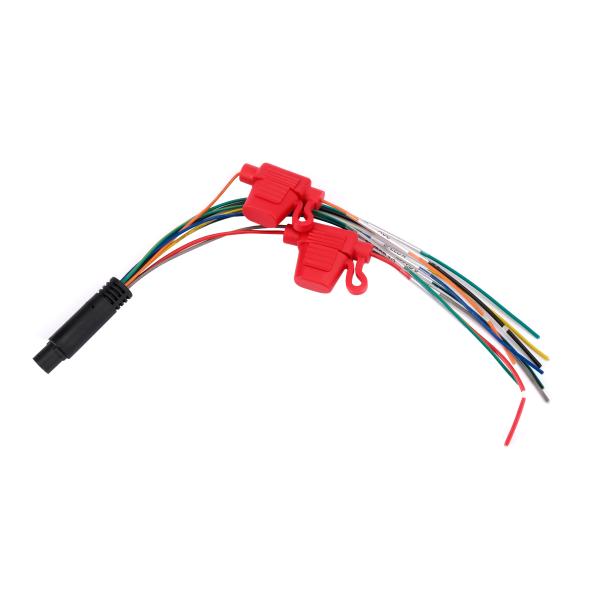

car aviation plug in cable M8 for In-car vehicles stereo car wiring
harness
Product introduction
Which provides a method of cable connector assembly steps of this
method include, will at least one terminal inserting an insulating
shell, among them, the insulation shell is equipped with a
ontology, the ontology front end is equipped with a connector, then
end is equipped with a platform, the terminal has a main body,
front end is equipped with a contact part of the subject, the
backend is equipped with a connection, in the assembly of the first
step, A metal shell coating insulation shell, among them, the metal
shell including a top, a bottom and two side, at least one wire and
terminal connections department, the wire by an insulating outer
bag after, then a layer of epoxy resin coating on the platform of
the insulation shell and the joint of the wire and terminal
connection department, to complete the cable connector assembly
procedure in the process of the mold, In the second step of the
assembly, an insulated housing is used to cover the pre-cast cable
connector completed in the first step.
The advantages of the method lie in that the components are simple,
the assembly is simple, the manufacturing and assembly cost is
reduced, and it can effectively butt with the general series busbar
connector.
With the continuous improvement of people's requirements for
comfort, economy and safety, the types of electronic products on
the automobile are also increasing. The automobile wiring harness
is becoming more and more complex, and the failure rate of the
wiring harness is also increasing accordingly. This requires
improving the reliability and durability of the wire harness. Many
people are interested in the process and production of the
automobile wire harness. Here, I will give a brief description of
the knowledge of the process and production of the automobile wire
harness.
product properties
| material | PVC UL |
| length | according to customer requirement |
| connector | M8 2P |
| Color | red black |
Product drawings
Company information
Shenzhen soulin Electronic Technology Co., Ltd., founded in
September 2009, is located in Guangming District, Shenzhen. It
specializes in the R & D and manufacturing of connectors.
It has more than 300 employees and a plant area of more than 14000
square meters. It is divided into hardware department, injection
molding department, assembly department and electroplating
Department. It has 36 precision high-speed punches, 32 precision
injection molding machines, and more than 180 automatic product
assembly machines.
The company strictly in accordance with national standards for
product development and production
The main products are: shielded wire, video wire, molding wire,
terminal wire, LED strip wire The main products are: shielded wire,
video wire, molding wire, terminal wire, LED strip wire, new energy
vehicle wire harness, etc., and can be customized according to
customer needs. Scope of application: new energy equipment New
energy equipment, smart home, car monitoring equipment, high-rise
building intercom, monitoring, anti-theft, fire fighting and
automatic meter reading The product range includes: new energy
equipment, intelligent home, car monitoring equipment, high-rise
building intercom, monitoring, burglary, fire prevention and
automatic meter reading, visualization teaching project, computer
network project, broadcasting audio project, etc.
