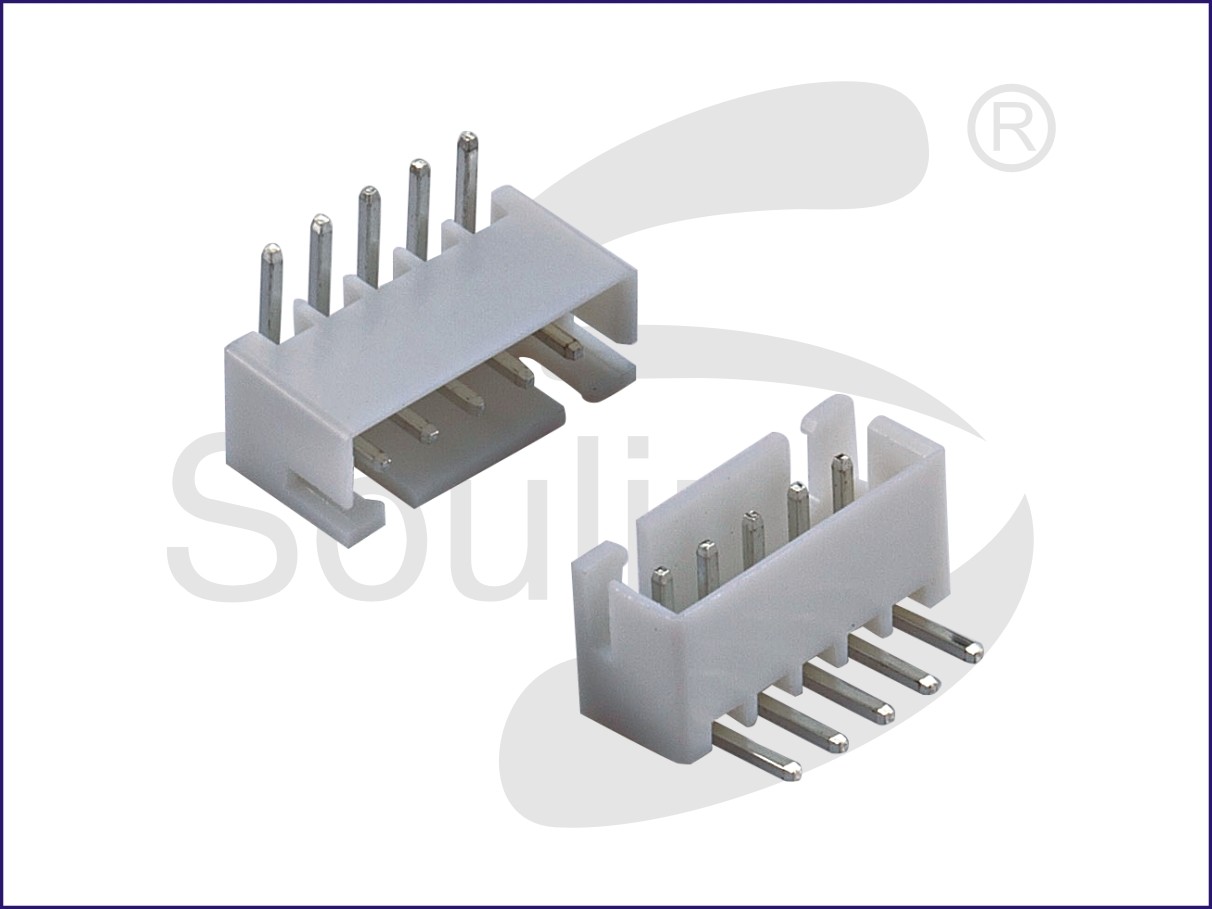

H7.1 Xh2.54 Lcp Wafer Pin Header Right Angle Humidity Resistance

• Connector is a component that our electronic engineers and technicians often contact. Its function is very simple: in the circuit is blocked or isolated between the circuit, set up a communication bridge, so that the current flow, so that the circuit to achieve the desired function. Connectors are indispensable parts of electronic equipment. Follow the path of current flow and you will always find one or more connectors. Connector forms and structures are ever-changing, with the application object, frequency, power, application environment and so on, there are different forms of connector. For example, the connector used to light the lights on the court is very different from the connector used to light the hard drive or the connector used to light the rocket. But no matter what kind of connector, it is necessary to ensure that the current flows smoothly and continuously and reliably. In general terms, the connector is not only connected to the current, in the rapid development of optoelectronic technology today, the carrier of signal transmission in optical fiber system is light, glass and plastic instead of ordinary circuit wire, but optical signal path also use connectors, their role is the same as the circuit connector.

• Environmental performance Common environmental performance includes temperature resistance, humidity resistance, salt spray resistance, vibration and impact.

  (1) At present, the highest working temperature of the connector is 200℃(except for a few high temperature special connectors), and the lowest temperature is -65℃. When the connector is working, the current generates heat at the contact point, resulting in a temperature rise. Therefore, it is generally considered that the operating temperature is equal to the sum of the ambient temperature and the temperature rise of the contact point. In some specifications, the maximum allowable rise of connectors at rated operating current is specified. (2)The invasion of moisture resistance will affect the insulation performance of the connection H and rust the metal parts. Constant humidity and heat test conditions are relative humidity 90%~95%(according to product specifications, up to 98%), temperature +40±20℃, the test time according to product regulations, at least 96 hours. Alternating wet - heat tests are more rigorous. (3)When the salt spray resistant connector works in the environment containing moisture and salt, the metal structure parts and the surface treatment layer of the contact parts may produce electrochemical corrosion, affecting the physical and electrical properties of the connector. To evaluate the ability of electrical connectors to withstand this environment, a salt spray test is prescribed. It is the connector hanging in the temperature controlled test box, with a specified concentration of sodium chloride solution with compressed air ejected, the formation of salt fog atmosphere, its exposure time by the product specification, at least 48 hours.(4)Vibration and impact resistance to vibration and impact is an important performance of electrical connectors, in special application environments such as aviation and aerospace, railway and road transportation is particularly important, it is an important indicator of the robustness of mechanical structure and electrical contact reliability of electrical connectors. There are specific provisions in the relevant test methods. Peak acceleration, duration and impact pulse waveform, as well as the time of electrical continuity interruption shall be specified in the impact test.(5)Other environmental performance according to the requirements of use, other environmental performance of the electrical connector and sealing (air leakage, liquid pressure), liquid immersion (resistance to vice of a specific liquid), low pressure, etc..

Shenzhen Soulin Eletronics Technology Co.,Ltd.establish in 2009,is a high -tech enterprise which specializes in the manufacturing and marketing of pin header,female header ,box header,SATA connector,BTOB connector,cable,RJ45,DIN41612,and aviation connector.Since the establish of the company,we have been and remain committed to becoming the industry leader for connectors.

The factory with area of 6000 square meter and has about the total number of employees 200 people and own 32 precision mold processing equipment,35 set high-speed precision punch,110sets of automated assembly machines.

All of products compliant “ROHS” and “REACH”,and also we can offer OEM manufacturing services and can meet customer demands with punctual delivery and perfect,We are looking forward to setting up business partnership with customer worldwide.

Shenzhen Soulin Electronics Technology Co., Ltd. was established in September 2009

Currently, the main products are pin header, female header, box header, aviation connector, board to board connector, SATA connector, DIN41612 connector, RJ45 and other precision connectors.

The factory with area of 6000 square and about the total number of employees 200 people and owns 32 precision mold processing equipment,35 sets high-speed precision punch,110 sets of automated assembly machines.

These products are mainly applied to vehicle monitoring, instruments and apparatus, LED display screen, Computer motherboards,Internet of Things, new energy, mobile storage and other fields.

Soulin company realizes the integrated business model of developing, manufacturing, selling and serving connectors.The Hardware Department, Injection Molding Department, Assembly Department and Square Pin Stamping Department are set up in succession.

All of products compliant“ROHS”and“REACH”,and also we can offer OEM manufacturing services and can meet customer’ demands with punctual delivery and perfect service.

Soulin company has established a long-term cooperative relationship with many domestic and foreign famous enterprises and sold products in Asia, Europe and America.

We are looking forward to setting up business partnerships with customers worldwide.

.
