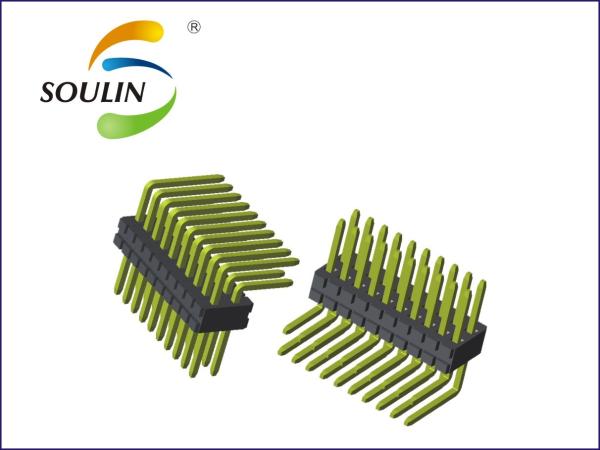

1.00mm Dual Row Pin Header Right Angle Waterproof Gold Plated

• Pin Header, a type of connector.
• This connector is widely used in electronic, electrical, instrument in the PCB circuit board, its role is in the circuit is blocked or isolated between the circuit, play a bridge function, take up the task of current or signal transmission.It is usually used with the busbar to form a board-to-board connection.Or matching with the electronic wiring harness terminal, forming a board-to-wire connection;Can also be used independently for board to board connection.
• Because the specifications required by different products are not the same, there are also a variety of pin specifications, according to the standard classification of pin connectors in the electronics industry:
• According to the spacing can be roughly divided into 2.54mm, 2.00mm, 1.27mm, 1.00mm, 0.8mm five categories according to the number of rows have a single row of needles, double row of needles, three rows of needles;According to the packaging rules with SMT(horizontal paste/vertical paste), plug-in DIP(direct insert/bend insert);According to the installation mode, 180° is represented by S, 90° by W, and SMT by T.
• Number of rows: single row, double row, three row, four row at most.
• Pin number: 02 to80
• Stitching: straight foot, bent foot, SMT;The size of the needle.
• Dimensions: overall dimensions length, width, thickness, row spacing.
• Spacing: 0.8, 1.0, 1.27, 2.0, 2.54.
• Material: refers to contact material and surface treatment, insulation material.
• Packing: blister shell, roll bag, bulk.
• Material: Pin material: brass or phosphor bronze;Insulation material: plastic UL94V-0.
• Surface treatment: gold plated 0.8U, tin plating, nickel plating.
• Processing technology: Row needle processing process is mainly: according to the requirements of brass (or phosphor bronze) processing pin,
• And according to the requirements of nickel plating and then gold, and then use a mold to process the insulation part, and finally in special equipment according to the ruler
• The pin is required to be inserted into the insulator.Pin Header, a type of connector.This connector is widely used in electronic, electrical, instrument in the PCB circuit board, its role is in the circuit is blocked or isolated between the circuit, play a bridge function, take up the task of current or signal transmission.It is usually used with the busbar to form a board-to-board connection.Or matching with the electronic wiring harness terminal, forming a board-to-wire connection;Can also be used independently for board to board connection.
• Because the specifications required by different products are not the same, so the row of needles also have a variety of model specifications, according to the standard classification of the electronic industry row of needles connector: according to the spacing can be roughly divided into 2.54mm, 2.00mm, 1.27mm, 1.00mm, 0.8mm five categories according to the number of rows of single row of needles, double row of needles, three rows of needles;According to the packaging rules with SMT (horizontal paste/vertical paste), plug-in DIP (straight insert/bend insert).
