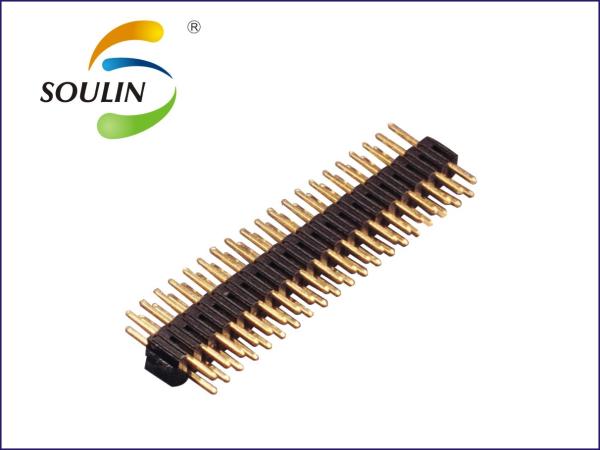

Brass PA6T PA9T Pin Header Connectors 2.0mm Dual Row Straight

• Pin Header, a type of connector.
• This connector is widely used in electronic, electrical, instrument in the PCB circuit board, its role is in the circuit is blocked or isolated between the circuit, play a bridge function, take up the task of current or signal transmission.It is usually used with the busbar to form a board-to-board connection.Or matching with the electronic wiring harness terminal, forming a board-to-wire connection;Can also be used independently for board to board connection.
• Because the specifications required by different products are not the same, there are also a variety of pin specifications, according to the standard classification of pin connectors in the electronics industry:
• According to the spacing can be roughly divided into 2.54mm, 2.00mm, 1.27mm, 1.00mm, 0.8mm five categories according to the number of rows have a single row of needles, double row of needles, three rows of needles;According to the packaging rules with SMT(horizontal paste/vertical paste), plug-in DIP(direct insert/bend insert);According to the installation mode, 180° is represented by S, 90° by W, and SMT by T.
• Number of rows: single row, double row, three row, four row at most.
• Pin number: 02 to80
• Stitching: straight foot, bent foot, SMT;The size of the needle.
• Dimensions: overall dimensions length, width, thickness, row spacing.
• Spacing: 0.8, 1.0, 1.27, 2.0, 2.54.
• Material: refers to contact material and surface treatment, insulation material.
• Packing: blister shell, roll bag, bulk.
• Material: Pin material: brass or phosphor bronze;Insulation material: plastic UL94V-0.
• Surface treatment: gold plated 0.8U, tin plating, nickel plating.
• Processing technology: Row needle processing process is mainly: according to the requirements of brass (or phosphor bronze) processing pin,
• And according to the requirements of nickel plating and then gold, and then use a mold to process the insulation part, and finally in special equipment according to the ruler
• The pin is required to be inserted into the insulator.
• Pin headers are a form of electronic connector that is widely used in electronic or instrumentation of the PCB function, acting as bridge between two pcb’s which are blocked and used to take the current or signal transmission. It consists of one or more rows of male pins typically spaced 2.54mm apart, however common sizes also include: 5.08mm, 3.96mm, 2.00mm, 1.27mm and 1.0mm. The distance between pins is commonly referred to as the pitch in the electronic community. The pin header is made of plastic and metal contacts and is usually inserted into the female header for connecting the board to another board.

Shenzhen Soulin Electronics Technology Co., Ltd. was established in September 2009

Currently, the main products are pin header, female header, box header, aviation connector, board to board connector, SATA connector, DIN41612 connector, RJ45 and other precision connectors.

The factory with area of 6000 square and about the total number of employees 200 people and owns 32 precision mold processing equipment,35 sets high-speed precision punch,110 sets of automated assembly machines.

These products are mainly applied to vehicle monitoring, instruments and apparatus, LED display screen, Computer motherboards,Internet of Things, new energy, mobile storage and other fields.

Soulin company realizes the integrated business model of developing, manufacturing, selling and serving connectors.The Hardware Department, Injection Molding Department, Assembly Department and Square Pin Stamping Department are set up in succession.

All of products compliant“ROHS”and“REACH”,and also we can offer OEM manufacturing services and can meet customer’ demands with punctual delivery and perfect service.

Soulin company has established a long-term cooperative relationship with many domestic and foreign famous enterprises and sold products in Asia, Europe and America.

We are looking forward to setting up business partnerships with customers worldwide.

.
