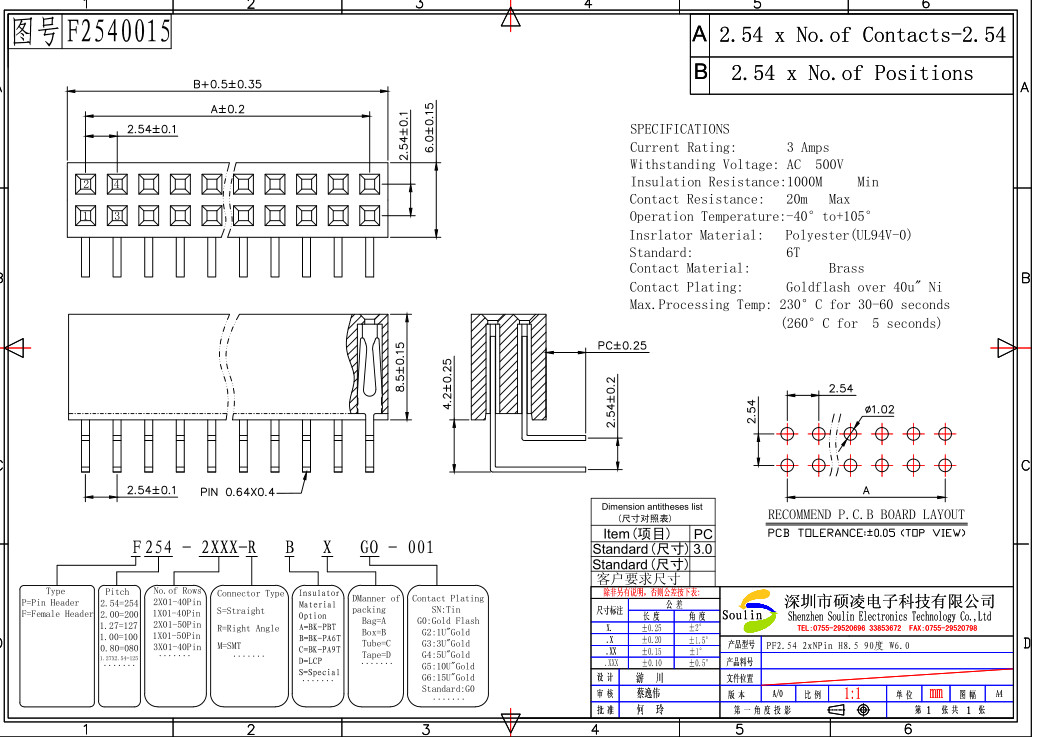

2.54mm pitch plastic waterproof gold plated female header dual row right angle H8.0 Ytype PC3.0

• Y-shaped terminal: it has two contacts with the pin, but the terminal is 0.64mm thick. The pin can be lengthened and the rubber core can be overlaid to realize the secondary heightening of the pin.U-shaped terminal: There are 3 contact points with the row pin, the contact point is on the top of the product, the contact is stable to avoid transient break in the process of signal transmission. U-type leakproof tin terminal: there are 3 contact points with the pin, the contact point is on the top of the product, the contact is stable, avoid transient during signal transmission, prevent tin from leaking into the terminal.
  O-type terminal: there are three contact points with the row pin, the contact point is in the center of the product, the contact is stable to prevent transient interruption during signal transmission.
  O-type leakproof tin terminal: there are 3 contact points with the pin, the contact point is in the center of the product, the contact is stable to prevent the signal transmission transient, prevent tin leakage into the terminal.
• High temperature resistant insulating plastic (UL94V-0) material: PBT(only meet the wave soldering process).
  High temperature resistant insulating plastic (UL94V-0) material: PA6T, PA9T, LCP(can meet the wave soldering, reflow welding two kinds of process).
  The color of insulating plastic can be divided into black, white, blue, natural color and so on.
  Hardware contact terminal material: brass (C2680) or phosphor copper (C5191), leather copper.
  Hardware contact terminal surface treatment: nickel plating first in gold or silver plating, bright tin plating, wuxi plating, semi-gold tin plating, etc.
