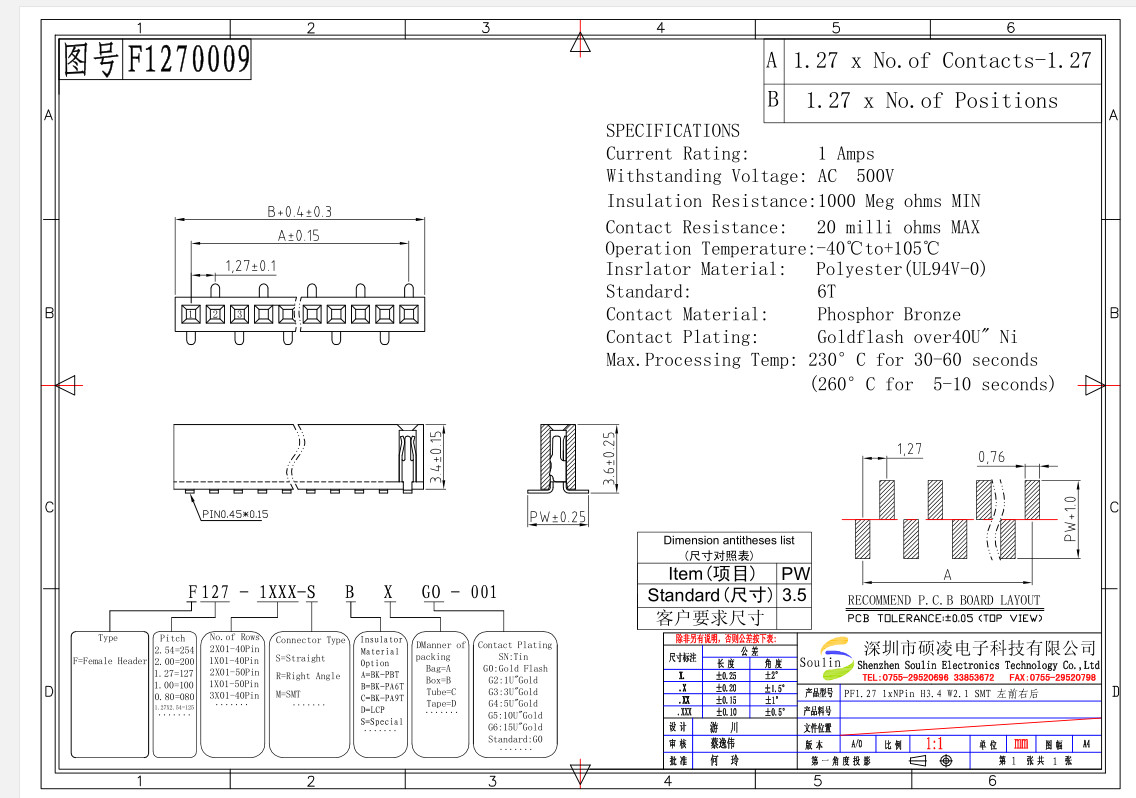

Plastic Waterproof 8 Pin Female Header 1.27mm Pitch Pin Connector

• "Female Header is a type of connector.
  This connector is widely used in electronic, electrical, instrument in the PCB circuit board, its role is in the circuit is blocked or isolated between the circuit, play a bridge function, take up the task of current or signal transmission.
  Usually used with row pin matching, forming a board-to-board connection; Or matching with the electronic wiring harness terminal, forming a board-to-wire connection; Can also be used independently for board to board connection.
  Because different products require different specifications, there are also a variety of sizes."
• High temperature resistant insulating plastic (UL94V-0) material: PBT(only meet the wave soldering process).
  High temperature resistant insulating plastic (UL94V-0) material: PA6T, PA9T, LCP(can meet the wave soldering, reflow welding two kinds of process).
  The color of insulating plastic can be divided into black, white, blue, natural color and so on.
  Hardware contact terminal material: brass (C2680) or phosphor copper (C5191), leather copper.
  Hardware contact terminal surface treatment: nickel plating first in gold or silver plating, bright tin plating, wuxi plating, semi-gold tin plating, etc.

,

Shenzhen Soulin Electronics Technology Co., Ltd. was established in September 2009

Currently, the main products are pin header, female header, box header, aviation connector, board to board connector, SATA connector, DIN41612 connector, RJ45 and other precision connectors.

The factory with area of 6000 square and about the total number of employees 200 people and owns 32 precision mold processing equipment,35 sets high-speed precision punch,110 sets of automated assembly machines.

These products are mainly applied to vehicle monitoring, instruments and apparatus, LED display screen, Computer motherboards,Internet of Things, new energy, mobile storage and other fields.

Soulin company realizes the integrated business model of developing, manufacturing, selling and serving connectors.The Hardware Department, Injection Molding Department, Assembly Department and Square Pin Stamping Department are set up in succession.

All of products compliant“ROHS”and“REACH”,and also we can offer OEM manufacturing services and can meet customer’ demands with punctual delivery and perfect service.

Soulin company has established a long-term cooperative relationship with many domestic and foreign famous enterprises and sold products in Asia, Europe and America.

We are looking forward to setting up business partnerships with customers worldwide.

.
